FAGOR Counter Top Gas Boiling Tops

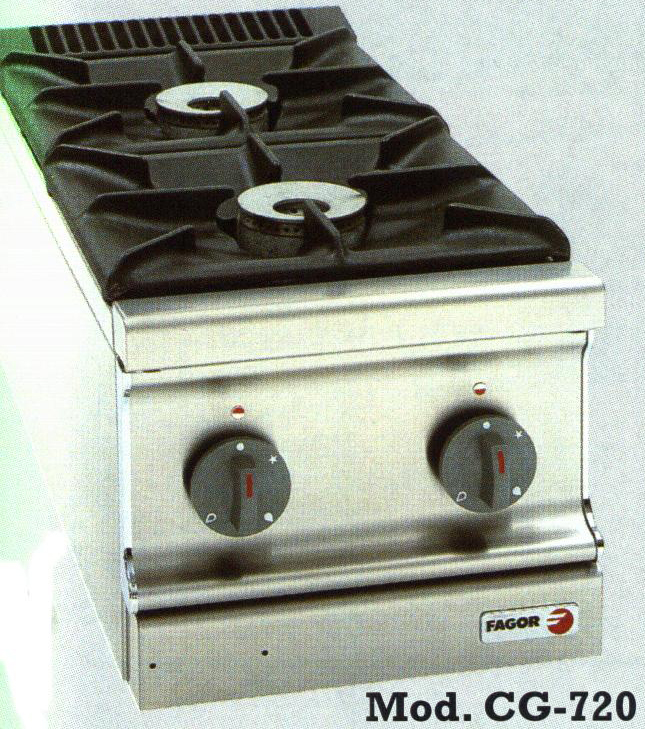

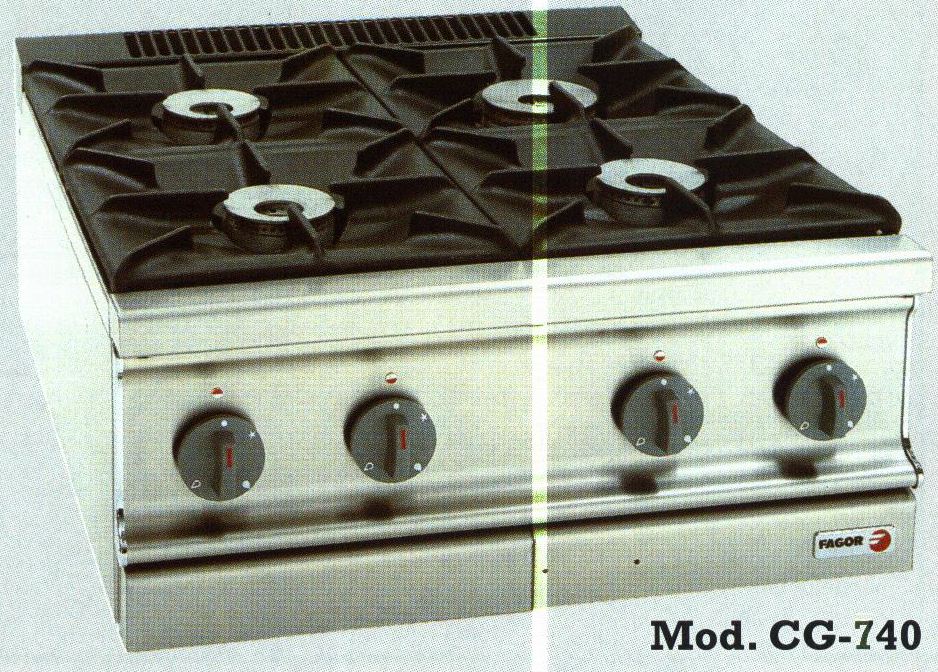

Model: CG-720, CG-740, CG-720 H, CG-740 H
Dimensions:

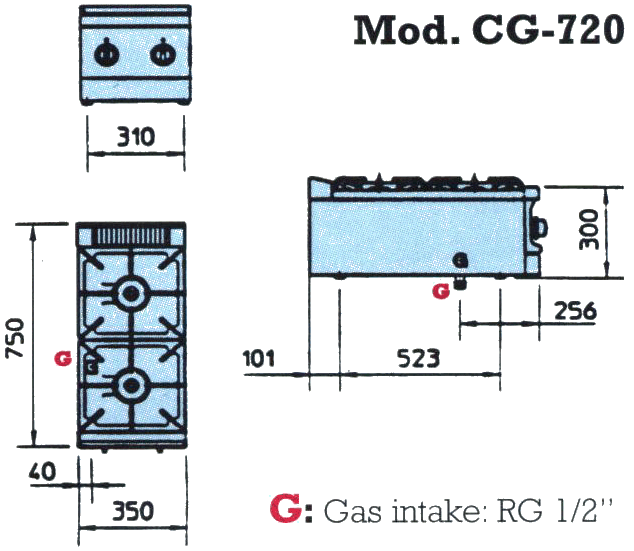

CG-720, CG-720 H: 350(L) * 750(D) * 290(H)mm

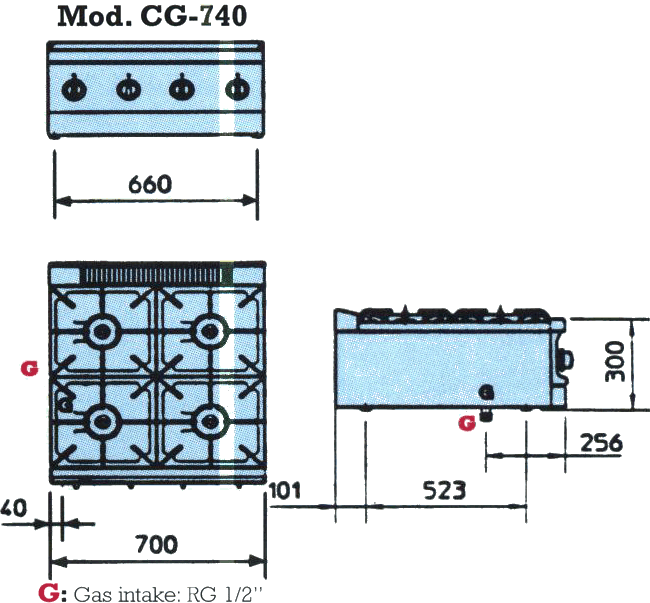

CG-740, CG-740 H: 700(L) * 750(D) * 290(H)mm
Grid dimensions: 347 * 310mm
Accessories:
Open hobs with safety valve and thermocouples
Pilots for ignition
Cast iron gratings and burners
Fat collector under the grills
Burners:
CG-720: 2 * 4000kcal/h
CG-740: 3 * 4000kcal/h, 1 * 6000kcal/h
CG-720 H: 2 * 8000kcal/h
CG-740 H: 4 * 8000kcal/h
Gas
Power:
CG-720: 9.3kW (8000kcal/h)
CG-740: 20.3kW (18000kcal/h)
CG-720 H: 18.0kW (16000kcal/h)
CG-740 H: 37.1kW (32000kcal/h)
|
|
